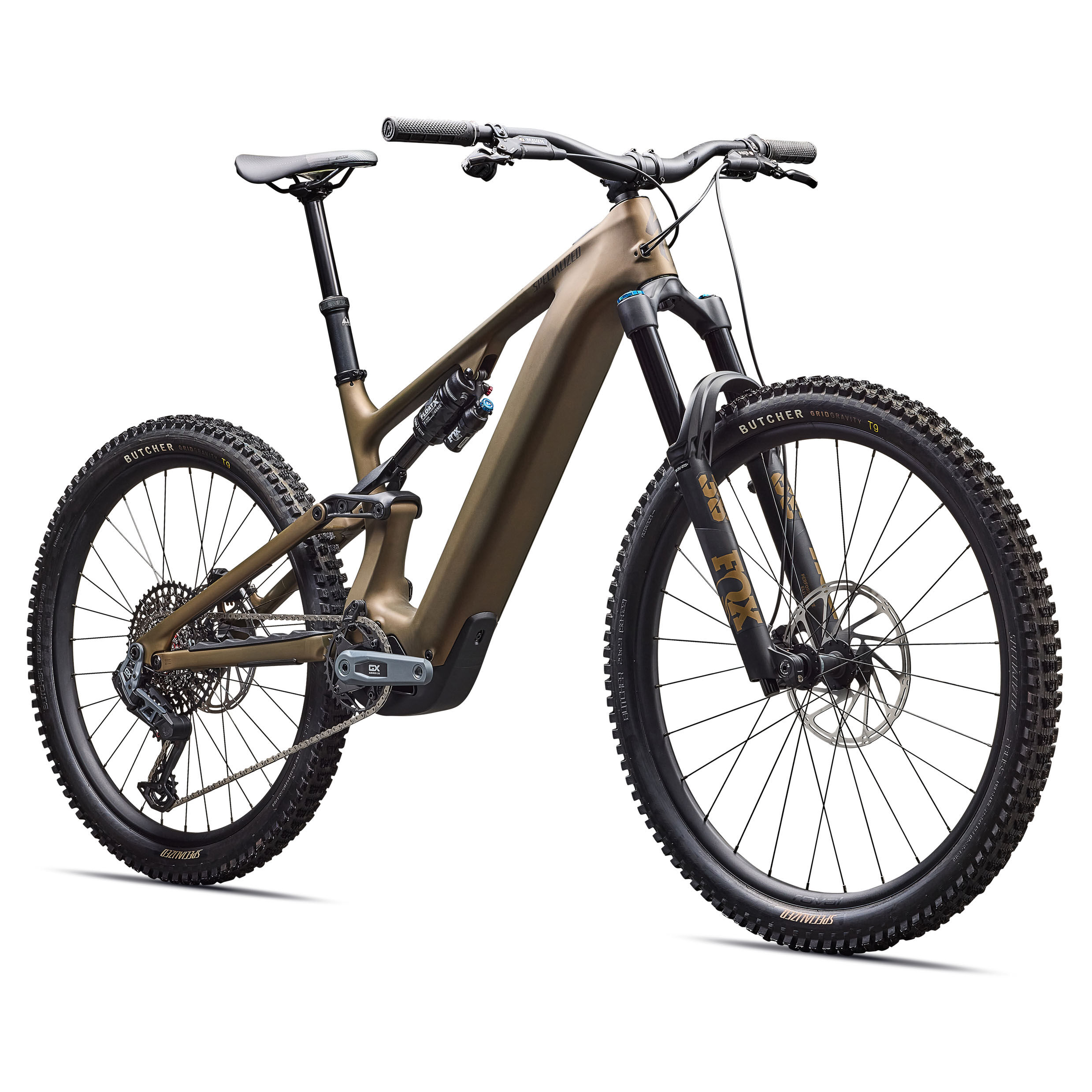

Levo 4, Where Super Meets Natural
The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you’re SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4.
Features
- Use – Full Power E-MTB Trail
- E-System – Specialized 3.1 Motor w/ 666 Watts & 101 Nm, 840 Wh Battery, up to 5.33 hour range
- Frame – FACT 11m Carbon, Geo Adj & SWAT Storage
- Suspension – Front: 160mm FOX 38 Performance Elite GRIPX2, Rear: 150mm GENIE – FOX FLOAT X Performance Elite
- Drivetrain – SRAM GX Eagle T-Type AXS
- Wheels – Roval Traverse Alloy / DT 370
- Supernatural E-MTB Power, Ride, and Range
- SuperNatural Power, Ride, and Range
Tech Specs

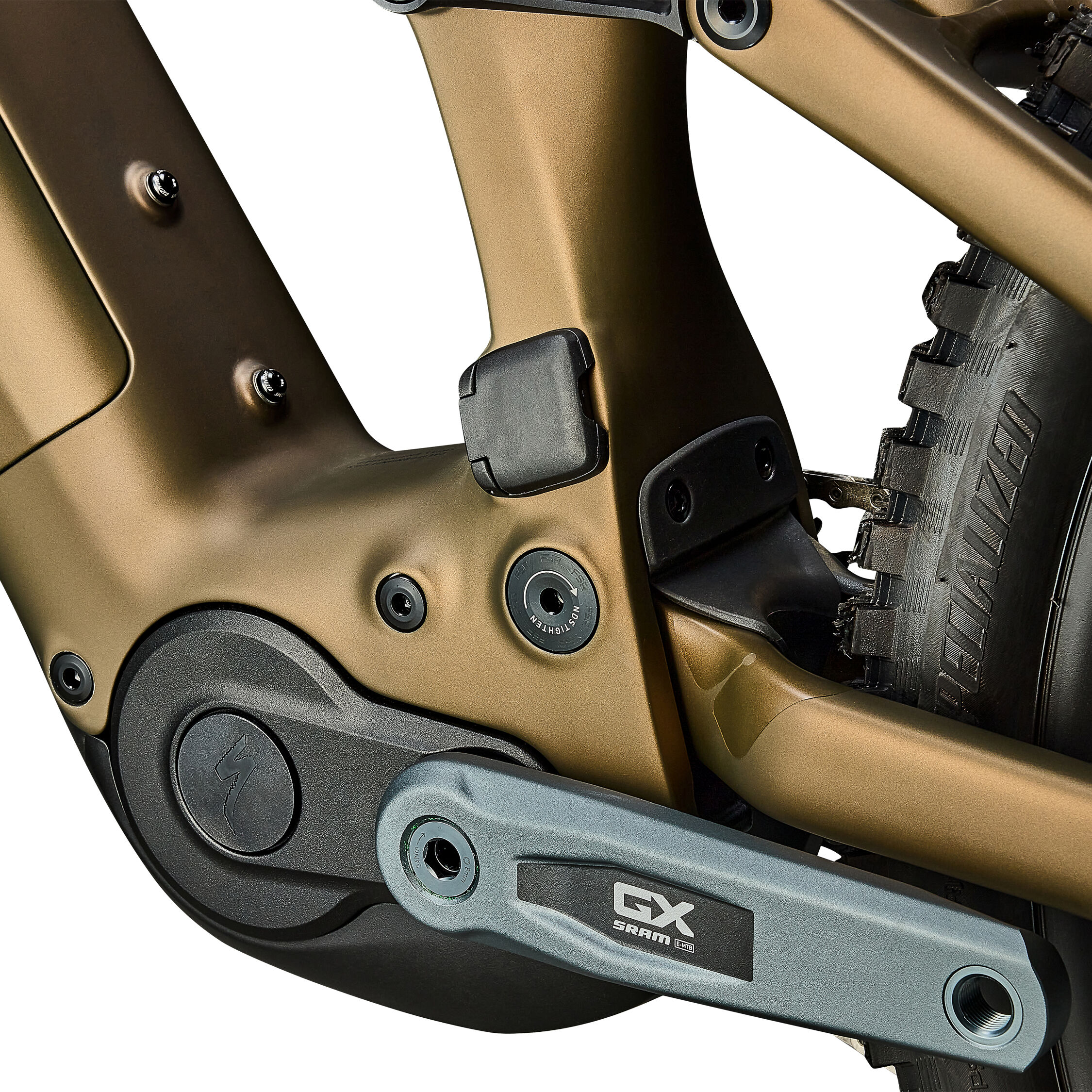

- Motor: All New Specialized 3.1 Motor, 101Nm torque, 666W power
- Battery: 840wh battery
- UI/Remote: All New MasterMind T3 Display System, 2.2″ high resolution, colour screen, fully customisable with Specialized app
- Charger: Specialized 4amp charger
- Frame: All new Levo 4 frame, FACT 11m carbon chassis and rear-end,, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH, compatible, w/ SWAT storage, 150mm of travel, side entry, battery, fork travel up to 180mm
- Collar: saddle Alloy, 38. 6mm

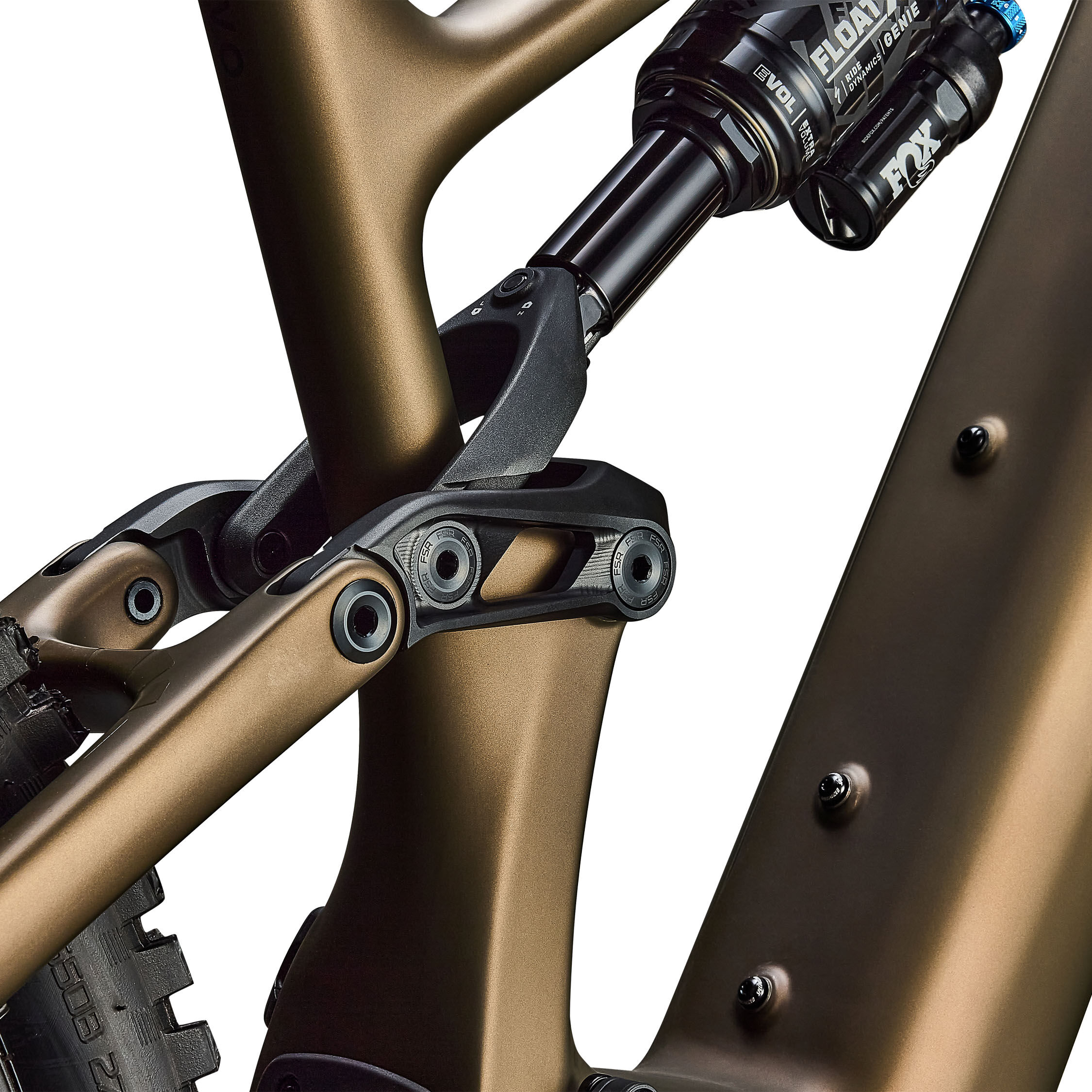

- Shock absorber: rear FOX FLOAT X Performance Elite with Specialized GENIE Shock, Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting, Open mode tuning range, LSR adjustment
- Fork: FOX 38 Performance Elite series, 29″, GRIP X2, damper,15x110mm axle, 44mm offset, 160mm of travel
- Front brake: SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm, Rotor
- Rear brake: SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm, Rotor
- Shifters: SRAM AXS POD Controller
- Rear Derailleur: SRAM GX Eagle Transmission Derailleur
- Sprocket Pack: SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
- Chain: SRAM GX Eagle Transmission Flattop Chain
- Crankset: SRAM GX Eagle Crankset, ISIS interface, Integrated Guard,,, 55mm Chainline, 155mm
- Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel
- Front tyre: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound,, 2Bliss Ready, 29×2.3″
- Front Wheel: Roval Traverse Alloy 29″, DT Swiss 370, 15x110mm, 28h
- Rear Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound,, 2Bliss Ready, 27.5×2.3″
- Rear Wheel: Roval Traverse Alloy 27. 5″, DT Swiss 370 XD freehub body,,, 12x148mm, 32h
- Inner tubes: Standard, Presta valve
- Stem: Alloy Trail Stem, 35mm bar bore
- Handlebars: Alloy handlebars, 35mm diameter, 8 degree back sweep, 6, degree up sweep, S2: 30mm rise 780mm width, S3-S5: 40mm, rise, 800mm width
- Knobs: Deity Lockjaw grips
- Saddle: Bridge Comp, Hollow Cr-mo rails
- Seatposts: PNW Loam post w/travel adjust S2: 150mm, S3: 170mm,, S4/S5/S6: 200mm
- SWAT: SWAT internal downtube storage
- Manufacturer’s weight: 24.41 kg (53 lb, 13.0 oz)
- Weighted measurement: S4
